Name: Harvia Cilindro Sauna Heater
Brand: Harvia
SKU: CILINDRO-PC
Availability: InStock

Product Information

Dimensions and Weight
Item information	Value
GTIN:	7867553445350
Category:	SAUNA HEATERS
Connection cable:	3 x 10 mm², 3 x 6 mm², 5 x 1,5 mm², 5 x 2,5 mm²
Supply voltage, phase:	230 V 1N~, 230 V 3~, 400 V 3N~
Country of origin:	Finland
Rear safety distance (flammable materials):	30 mm, 100 mm
Rear safety distance (non-combustible materials):	30 mm, 100 mm
Output:	6,6 kW, 6,8 kW, 9,0 kW, 10,8 kW
Lighting Control:	Yes (max. 100 Watt), Not
Ventilation control:	Not
Minimum ceiling height (depending on connections and thus on the output, star/triangle):	1900 mm
Width:	255 mm, 320 mm, 365 mm
Height:	930 mm, 1070 mm, 1340 mm
Depth:	255 mm, 320 mm, 365 mm
Sauna room max:	9 m³, 10 m³, 14 m³, 18 m³
Sauna room min:	5 m³, 6 m³, 8 m³, 9 m³
Sauna room height min:	1900 mm
Sauna stones:	Not included in the delivery
Safety distance (ceiling):	540 mm, 830 mm, 950 mm
Safety distance on the left (flammable materials):	100 mm
Safety distance on the left (non-combustible materials):	100 mm
Safety distance on the right (flammable materials):	100 mm
Safety distance on the right (flammable materials):	100 mm
Fuse:	1 x 50 A, 1 x 35 A, 3 x 10 A, 1 x 40 A, 3 x 20 A, 3 x 16 A, 3 x 35 A, 3 x 25 A
Smartphone control:	Yes, No, Optional
Stones Ø Diameter:	50 - 100 mm
Stone capacity max,:	90 kg, 120 kg, 75 kg, 80 kg
Control unit:	Built-in, Equipped, Requires separate control unit
Front safety distance (non-combustible materials):	100 mm
Content:	1,00 Piece

Product Description

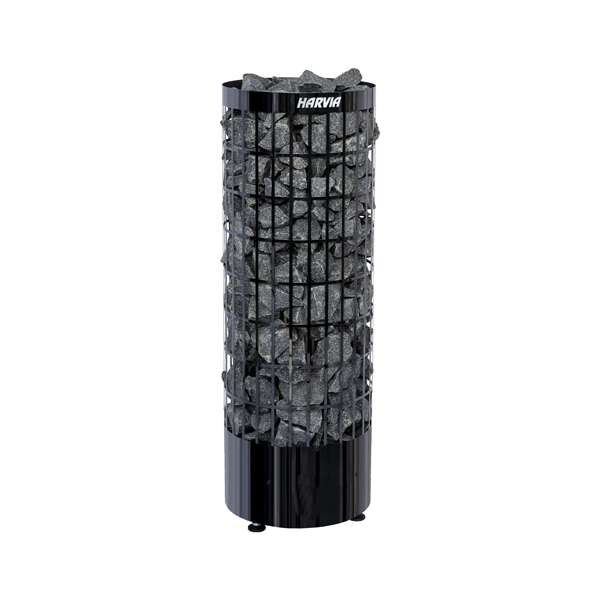

Harvia Cilindro Sauna Heater

The Harvia Cilindro sauna heater combines modern Finnish design with exceptionally pleasant heat development and is one of the most popular electric sauna heaters for demanding sauna projects. Thanks to its distinctive cylindrical shape and large stone capacity, it produces a particularly soft, even and long-lasting steam that takes the classic Finnish sauna experience to a new level.

The open stone pillar ensures that heat is stored optimally and released slowly. This creates a very even temperature distribution inside the sauna. At the same time, the design allows intensive water infusions without the heat feeling unpleasantly aggressive. Users particularly benefit from the pleasant and constant heat development during longer sauna sessions.

Modern cylindrical design

Stone capacity of up to 120 kg

Soft and even steam

Power output from 6.6–11 kW

For sauna rooms of 5–18 m²

High-quality stainless steel

Intensive water infusions possible

Durable construction

Energy-efficient operation

Ideal for private saunas

Also suitable for commercial use

Even heat distribution

With a stone capacity of up to 120 kg, the Harvia Cilindro is one of the powerful sauna heaters in its class. The large amount of sauna stones stores heat efficiently and ensures that the temperature remains stable even with frequent water infusions. This creates a particularly pleasant and relaxing sauna climate.

The sauna heater is made of high-quality stainless steel and has been specially developed for continuous use at high temperatures. The robust material ensures a long service life and reliably protects the heater from corrosion and thermal stress. At the same time, the elegant design blends harmoniously into both modern and classic sauna interiors.

Thanks to various power versions between 6.6 and 11 kW, the Harvia Cilindro series is suitable for sauna rooms of different sizes and offers a flexible solution for both private wellness areas and professional sauna facilities.

Recommended Accessories

The right accessories play a crucial role in ensuring safe, efficient and long-term reliable use of the Harvia Cilindro sauna heater. Especially with powerful sauna heaters with a high stone capacity, additional components influence not only safety but also the quality of the entire sauna experience.

High-quality sauna stones are particularly important, as they are directly responsible for heat storage and steam quality. The open design of the Harvia Cilindro was specially developed to hold a large quantity of stones and distribute the heat evenly throughout the room. The full performance of the sauna heater can only be achieved with correctly selected and properly arranged stones.

Protective and installation components are equally important. When installing an electric sauna heater, safety distances and suitable surfaces must be taken into account. High-quality protective solutions help protect surrounding materials from heat exposure and ensure long-term operational safety.

Control systems and temperature regulation also contribute significantly to user comfort. They allow precise control of the sauna and ensure that temperature and operating times can be set optimally. This not only increases comfort but also helps control energy consumption efficiently.

In addition, suitable accessory components support the longevity of the sauna heater. Correct installation, high-quality materials and optimal air circulation help reduce thermal stress and ensure reliable long-term operation of the sauna heater.

The Harvia Cilindro is therefore not just a single sauna heater, but part of a well-designed overall system in which all components should be optimally coordinated. Only in this way can a safe, efficient and particularly pleasant sauna experience be created.

Important Information on Installation and Use

The Harvia Cilindro sauna heater should only be installed by qualified professionals. As this is a powerful electric sauna heater, all electrical connections must be carried out in accordance with the applicable safety and installation regulations. Improper installation can not only impair functionality but also create safety risks.

Before installation, it must be checked whether the power output of the sauna heater is correctly matched to the volume of the sauna. Depending on the model, the Harvia Cilindro is suitable for sauna rooms between 5 and 18 m². Incorrect sizing can result in the sauna either not being heated sufficiently or causing unnecessarily high energy costs.

Special attention should be paid to the prescribed safety distances from walls, ceiling and benches. Since the Harvia Cilindro has an open stone structure, heat can be released directly into the surrounding area. Compliance with the minimum distances is therefore essential to protect surrounding materials from overheating.

Ventilation of the sauna also plays a central role. Properly planned air circulation ensures that the heat is distributed evenly and that the sauna heater can operate efficiently. Insufficient ventilation can impair heating performance and negatively affect the sauna experience.

The sauna stones should only be used in accordance with the manufacturer’s instructions and checked regularly. Damaged or incorrectly arranged stones can obstruct air circulation and reduce heating performance. To ensure optimal function, the stones should be stacked loosely so that air can circulate freely.

Before first use, it is recommended to heat the sauna heater fully without sauna users present. This allows any production residues to be removed. During this initial heating process, the sauna should be well ventilated.

For safe and long-term operation, all electrical components should be checked regularly and maintenance intervals observed. This contributes significantly to operational safety and extends the service life of the sauna heater.

Why Buy from Us?

We are an official partner of this brand and work intensively with high-quality sauna and wellness solutions. This means that with us, you receive not just a sauna heater, but a well-thought-out overall concept consisting of technology, safety, accessories and many years of experience.

Especially with a premium sauna heater such as the Harvia Cilindro, the right combination of power, sauna size, control system, stones and installation components is crucial. We help you find the right configuration and avoid typical mistakes during planning and installation.

Our range is specifically tailored to high-quality sauna systems. This means you will find not only the sauna heater itself, but also compatible accessories and professional solutions for different types of saunas and requirements.

Thanks to our experience with sauna and wellness projects, we understand the technical relationships behind the products and can therefore provide much more targeted advice than standard retailers. For us, the focus is not only on sales, but on the long-term satisfaction of our customers.

If you value quality, safety, durable technology and a harmonious sauna experience, you are in exactly the right place with us.

Warranty & Conditions

The manufacturer Harvia’s warranty conditions apply to the Harvia Cilindro. A prerequisite for the warranty is professional installation by qualified personnel and use in accordance with the official manufacturer’s instructions.

The warranty covers material and manufacturing defects that may occur during normal use. Wear parts as well as damage caused by improper installation, faulty electrical connections, lack of maintenance or incorrect use are excluded from the warranty.

Sauna stones are considered wear material and must be checked regularly and replaced if necessary. Damage caused by unsuitable or incorrectly placed stones is not covered by the warranty conditions.

Compliance with all prescribed safety distances and installation guidelines is equally important. In the event of overheating, improper ventilation or non-professional installation, the warranty may become void.

We therefore expressly recommend carefully observing all installation, operating and maintenance instructions provided by the manufacturer in order to permanently ensure the maximum service life, safety and functionality of the Harvia Cilindro sauna heater.
